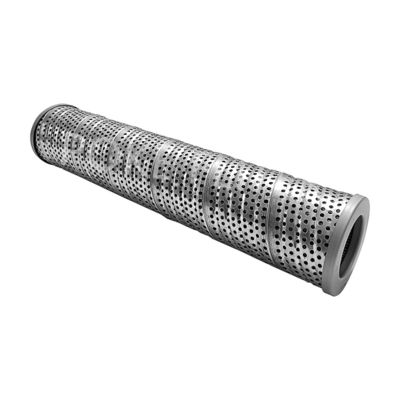

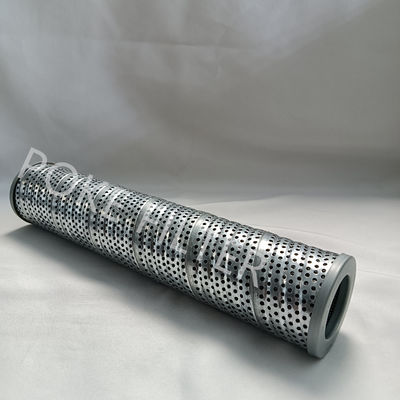

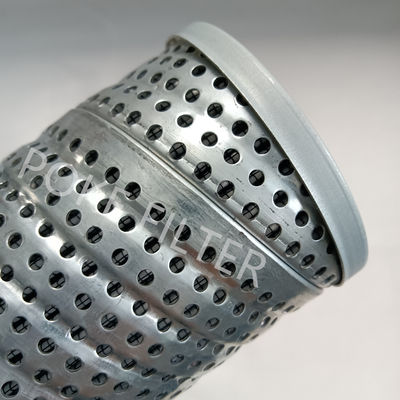

Hydraulic Filter Element SH55153 oil filter element glass fiber material

Hydraulic Filter Element SH55153 oil filter element glass fiber material


Description:

1. It is divided into high pressure section, medium pressure section, oil return section and oil suction section.
2. Divided into high, medium and low precision grades. 2-5um is high precision, 10-15um is medium precision, and 15-25um is low precision.
3. In order to compress the finished size of the filter element and increase the filter area, the filter layer is generally folded into a corrugated shape, and the pleated height of the hydraulic filter element is generally below 20mm
4. The pressure difference of the hydraulic filter element is generally 0.35-0.4MPa, but some special filter elements are required to withstand a high pressure difference, the highest requirement is to withstand 32MPa, or even 42MPa equivalent to the system pressure.
5. The maximum withstand temperature, some require to reach 135°C

Specifications:


Applications:

1. Metallurgy: It is used for the filtration of the hydraulic system of rolling mills and continuous casting machines and the filtration of various lubricating equipment.
2. Petrochemical: Separation and recovery of products and intermediate products in the process of oil refining and chemical production, oil field injection well water and natural gas particle removal filtration.
3. Textile: Purification and uniform filtration of polyester melt in the drawing process, protection and filtration of air compressors, degreasing and water removal of compressed gas.
4. Electronics and pharmaceuticals: pretreatment filtration of reverse osmosis water and deionized water, pretreatment filtration of cleaning solution and glucose.
5. Thermal power and nuclear power: Gas turbine, boiler lubrication system, speed control system, oil purification of bypass control system, purification of feed water pump, fan and dust removal system.


Feature Advantage:

1. Air permeability: American strong hydrophobic and oleophobic fiber filter material is adopted, and a skeleton with good permeability and high strength is used to reduce the resistance caused by filtration.
2. Efficiency: German fine-opening glass fiber is used, which can effectively prevent oil and water from being entrained by high-speed airflow, so that the filtered fine oil droplets gather at the lower end of the glass fiber and drain to the bottom of the filter container.
3. Air-tightness: The joint point with the filter shell adopts a reliable sealing ring, but it ensures that the air flow is not short-circuited, and prevents impurities from directly entering the downstream without passing through the HYDAC filter element.
4. Anti-corrosion of the filter element: It adopts anti-corrosion reinforced nylon end cover and anti-corrosion frame, which can be used in harsh working conditions.

Company Profile

Yuanbang Filter Technology (Langfang) CO.,LTD. was founded in 2004 .The company has perfect process such as: machining, stamping, surface treatment, filter assembly, rubberproducts, such as workshop, technology, quality inspection, quality management and advanced production lines, relying on the abundant technical force and high-quality skilled workers, with companies such as Germany, the United States, South Korea high-quality filter material and other filter material,
