944894Q 946437Q High Pressure Hydraulic Filter Elements Stainless Steel / Fiberglass

10
MOQ
negotiated price
Price
944894Q 946437Q High Pressure Hydraulic Filter Elements Stainless Steel / Fiberglass
Features Gallery Product Description Request A Quote
Features
Specifications
Weight: 2kg
Type: Hydraulic Filter Element
Application: Construction Machinery
Material: Fiberglass/stainless Steel Inner Mesh
Package: Neutral Packing
Part NO: 944894Q 946437Q
Filtration Efficiency: 99.99% Filtration Area
After-sales Service Provided: Online Support
O-ring Material:: Vition, Nitrile (NBR)
Size: Standard
High Light:

944894Q high pressure hydraulic filter elements

,

Stainless high pressure hydraulic filter elements

,

946437Q high pressure filter element

Basic Infomation
Place of Origin: Langfang, Hebei Province, China
Brand Name: POKE
Certification: ISO9001
Model Number: 944894Q 946437Q
Payment & Shipping Terms
Packaging Details: Neutral packing, carton, wooden frame
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 4000pcs/month
Product Description

944894Q 946437Q Stainless Steel/Fiberglass Hydraulic Filter Element

Features:

POKE Replacement Elements are designed for use with Tank Top Return Line Hydraulic Filters. The elements combine high efficiency filtration with low cost installation and are available with ratings ranging from 2 - 20 microns.



Specifications:



Length : Standard
Division : Hydraulic and Industrial Process Filtration
Brand : POKE
Technology : Filtration
Bypass Valve Pressure Rating : 1.7 bar
Product type : Hydraulic Oil Filter
Sealing material : Nitrile



Application : • Deck and mobile cranes
• Firefighting equipment
• Forwarders
• Hydraulic presses
• Marine steering units
• Power packs
• Waste management, dump and fork lift trucks
• Excavators
Harvesters
• Waste balers
• Dump trucks & drilling machines for mining
For fluid type : Hydraulic Oil
Operating pressure : 10 bar
150 psi
Operating temperature : -40 to +212°F
-40 to +100°C
Flow Rate : 0 to 1700 L/min



Related Models:

0030D003BN3HC 0030D010BN4HC 0030R010BN/HC 0950D010BN/HC
0030R020BN/HC 0040D025BN/HC 0060D003BN3HC 1300R020BN/HC
0060D003BN4HC 0060D005BN/HC 0060R020BN/HC 1300R010BN4HC
0010D005BN/HC 0110D005BN/HC 0110D005BN/HC 0480D020BN/HC
0140D005BN3HC 0140D005BN/HC 0140R020BN3HC 2600R020BN4HC
0160D020BN3HC 0160D020BN/HC 0160R020BN/HC 0330D005BN/HC
0240D0058N/HC 0240D010BN3HC 0240R010BN4HC 0280D005BN3HC
0240R010BN/HC 0240R020BN3HC 0240R020BN/HC 0330D010BN3HC





612600190646 612600190763 612600190993
612600190993 RK CLS110-10LU LFG-52X74E0.3
P2.0933-01 P30.52051 S2.1023-08
V2.1217-08 V3.0617-06 V5.1240-06
32-925694 581-18096 32-925694
TFX-400×10 TFX(ZX)-630×100 TFX-800×180
TLX245G FBX-800×20 CS-050A10-A
10440983 230962 243622
946437Q 944918Q 944890Q
944894Q 944915Q 937070Q
937953Q 938955Q 944817Q



944838Q 944839Q 944840Q 944841Q 944842Q 944843Q 944844Q 944845Q 944854Q 944855Q 944856Q 944857Q 944858Q 944859Q 944860Q 944861Q 944874Q 94475Q 944876Q 944877Q 944878Q 944879Q 944880Q 944883Q 944884Q 944885Q 944898Q 944899Q 944901Q 944902Q 944904Q 944905Q 944907Q 944908Q 944910Q 944911Q 944912Q 944913Q 944914Q 944915Q 944916Q 944917Q 944918Q 944919Q 944920Q 944921Q 971018Q 944830Q 944832Q 944834Q 944836Q 944831Q 944833Q 944835Q 944837Q 944846Q 944848Q 944850Q 944852Q 944847Q 944849Q 944851Q 944853Q 944862Q 944865Q 944868Q 944871Q 944863Q 944866Q 944869Q 944872Q 944864Q 944867Q 944870Q 944873Q 944886Q 944889Q 944892Q 944895Q 944887Q 944890Q 944893Q 944896Q 944888Q 944891Q 944894Q 944897Q 944900Q 944903Q 944906Q 944909Q 944950Q 944967Q 944881Q



P115890 P116042 P116143 P116187 P116442 P116446 P116453 P116501 P116502 P116511 P116541 P116570 P116918 P117089 P117092 P117331 P117332 P117341 P117383 P117431 P117433 P117434 P117435 P117437 P117439 P117441 P117443 P117451 P117478 P117580 P117626 P117638 P117639 P117743 P117781 P117782 P117797 P117809 P117813 P117939 P118157 P118158 P118159 P118160 P118166 P118211 P118216 P118352 P118365 P118375 P118516 P118517 P118677 P118678 P119007 P119091 P119100 P119133 P119135 P119136 P119167 P119168 P119183 P119232 P119233 P119234 P119235 P119236 P119237 P119239 P119242 P119244 P119245 P119247 P119257 P119340 P119347 P119363 P119368



16040382 1604071900 1612386900 16123980 16126921 1613243301 16134378 16135544 16136105

1613610500 1613610502 1613610590 1613688000 16136921 1613692100 16137048 1613730600 16137407

1613740700 16137408 16137502 1613750200 16138004 1610413101 1610413102 16123869 16132433

1613243300 1613570700 161360500 16136880 16137306 1613740800



71064773 , 71417300 , 71064763 , 71232023 , 71405318 , 71018858 , 71046112 , 71213283 , 71212293 , 731400 , 731401 , 731399 , 730936 , 730937 , 730516-0000 , 730514 , 731142 , 515310 , 730506 , 731143 , 730504 , 731148 , 730513 , 730507- 0000 , 730542 , 730517 , 730080 , 730502 , 730506 , 730508



944894Q 946437Q High Pressure Hydraulic Filter Elements Stainless Steel / Fiberglass 0

Using genuine poke Replacement Elements ensures protection against contaminant ingress in hydraulic circuits, which otherwise can damage critical system components, such as pumps, valves and cylinders, resulting in increased downtime and higher operational costs. The elements are available in single and double lengths and several micron ratings (2, 5, 10, and 20) to meet the individual requirements of customers’ applications.



Low Pressure Return Line Filters provide an economical alternative for quality tank top-mounted filtration. The filter is ideally suited for use with equipment that is required to operate in harsh environments, including mining, construction, marine, forestry, and agricultural operations. Elements are compatible with a wide range of hydraulic fluids including:

• Hydraulic mineral oils H to class HLPD (DIN51524)
• Operating fluids DIN ISO 2943
• Lubrication fluids ISO6743, APJ, DIN 51517, ACEA, ASTM
• Vegetable oils
• 60/40 Water glycols
• On request - Industrial grade phosphate esters
• Non-aggressive synthetic oils
• Non-aggressive bio-degradable oils (HETG, HEPG and HEES to VDMA 24568)

Benefits:
• Prevents contamination and ingress of dirt, sand, dust, metal, etc. into hydraulic system.
• Reduces component failures in between service intervals, increasing machine availability and reducing the cost of ownership over the life of your machine.
• Lengthens time in between required maintenance intervals, reduces operating costs, and extends overall equipment/machine operational life.
• Microglass media maximizes filtration capacity and element life, while maintaining low pressure drop, even under cold start conditions.
• Element assembly is designed for direct mounting and easy removal for maintenance, providing customers with both convenience and dependability.



Factory Profile

Poke 944894Q 946437Q Stainless Steel/Fiberglass Hydraulic Filter Element

Yuanbang Filtering Technology (Langfang) Co., Ltd. presents the Poke Industrial Hydraulic Oil V7.1235-53/SH52404 Hydraulic Filter Element. This high-quality filter element is designed to meet the needs of various industries, including metallurgy, petroleum, chemical, electric power, coal, mining, pharmaceutical, beverage, food electronics, and construction machinery.

With our advanced production lines and strong technical force, we ensure that each filter element is crafted with exquisite craftsmanship and made from high-quality filter materials sourced from reputable companies in Germany, the United States, South Korea, and other countries. Our filter element undergoes a complete technological process, including machining, stamping, surface treatment, filter assembly, and rubber products.

The Poke Industrial Hydraulic Oil 944894Q 946437Q Hydraulic Filter Element is known for its durability and reliability. It effectively filters out impurities, ensuring the smooth operation of hydraulic systems. Its frameless design allows for easy installation and replacement.

The main production and sales: hydraulic filter element, oil filter, oil filter, oil filter, water filter, air filter, natural gas filter and so on.

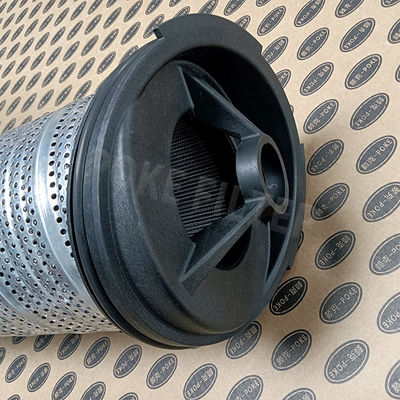

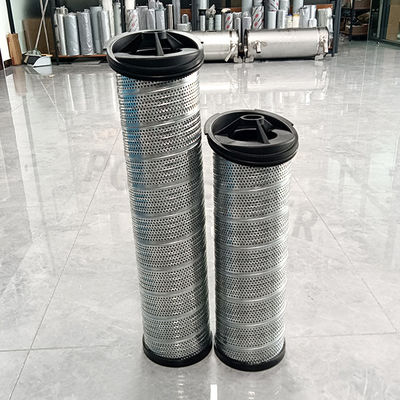

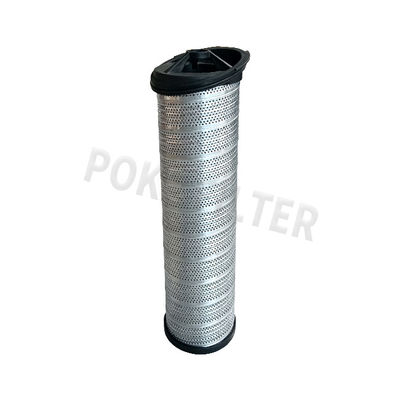

944894Q 946437Q High Pressure Hydraulic Filter Elements Stainless Steel / Fiberglass 1944894Q 946437Q High Pressure Hydraulic Filter Elements Stainless Steel / Fiberglass 2
944894Q 946437Q High Pressure Hydraulic Filter Elements Stainless Steel / Fiberglass 3944894Q 946437Q High Pressure Hydraulic Filter Elements Stainless Steel / Fiberglass 4


944894Q 946437Q High Pressure Hydraulic Filter Elements Stainless Steel / Fiberglass 5

FAQ

1. Are you a trading company or a manufacturer?
We are professional manufacturer.



2. What types of filters do you produce?
It is widely used in hydraulic filters, air filters, oil filters, and fuel filters in the fields of trucks, construction machinery, power station equipment, compressor units, etc.



3. Can the filter be customized?
Yes, please provide your required specifications and drawings



4. Can I provide you products with our logo and design?
Yes, you can. Most of our products can be customized according to your requirements.



5. How to get a quotation for filter elements?
Please tell us the specifications, such as material, length, width, which industry it is suitable for, etc.



6. Do you accept OEM service?
Yes!



7. Can we visit your factory?
Of course, you are always welcome!



8. What are your delivery terms?
(1)FOB (2)CFR (3)CIF (4)DDP



9. What is your delivery time?
1) Generally, if the goods are in stock, samples will be sent immediately via air express within 3-5 days
2) Usually within 15 to 30 days, please confirm with us before ordering!



10. What are the payment terms?
Normally, 30% as deposit, 70% by T/T before shipment
Western Union is accepted for small amounts.
L/C is accepted for large amounts.
Escrow, Paybal, Alipay credit cards can also be used
